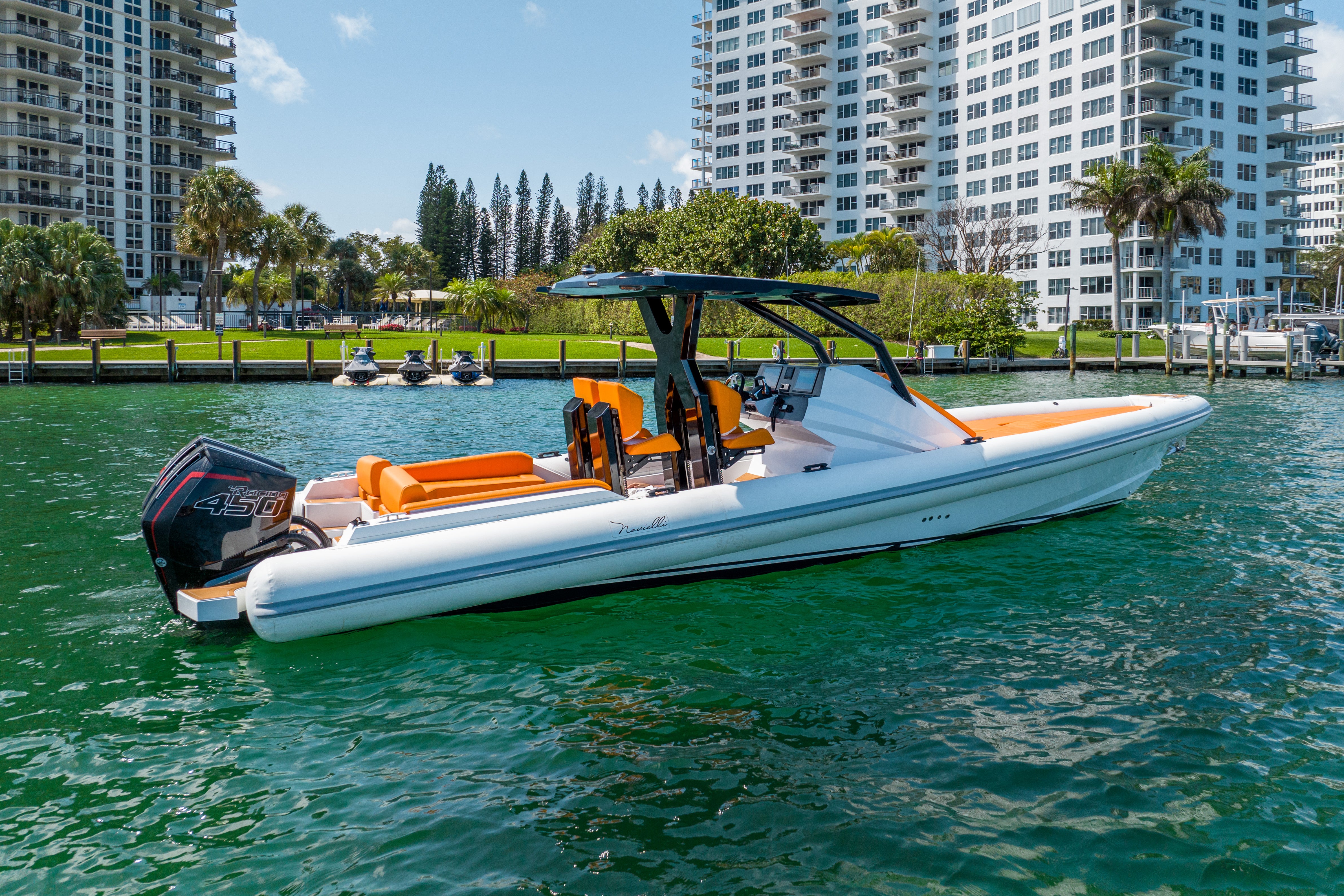

How to Upgrade the Console on a Rigid Inflatable Boat for Better Navigation

A Rigid Inflatable Boat (RIB) is prized for its agility, stability, and versatility across diverse waters and activities. Yet even the most seaworthy hull relies on an efficient console setup to keep the captain in command—particularly for navigation. Upgrading the console can optimize the helm experience with modern instruments, enhanced comfort, and user-friendly ergonomics. Whether you’re a nearshore angler, a leisure cruiser, or an avid offshore explorer, thoughtful modifications to the console pay dividends in safety and convenience.

In this blog, we’ll outline how to upgrade a RIB console for better navigation capabilities. We’ll explore how to pick the right marine electronics, install them securely on your console, arrange instruments for quick reference, handle wiring for reliability, and incorporate comfort features like better seating or wind protection. Along the way, we’ll point you to NovielliBoats.com for deeper dives into RIB care and advanced marine knowledge, while CenterConsoles.myshopify.com can help you find specialized console kits, dash components, or accessories tailored to your RIB’s layout. Let’s begin.

Step 1: Assessing Your Existing Console and Navigation Needs

Begin your upgrade journey by examining what you already have. Some RIBs come with a basic fiberglass or aluminum console that might support only minimal electronics or steering gear, while others include a partial windshield or modest dash. Here’s how to evaluate:

  • Console Dimensions and Mounting Points: Measure the dash area, height, and any brackets or frame supports. Determine whether you have enough surface area or if you might need an aftermarket console replacement for more real estate.
  • Current Instrument Setup: List what’s installed—tachometer, speedometer, fuel gauge, or a small fishfinder? Note their ages, condition, and how well they perform. Consider which devices you might keep vs. which are due for upgrading.
  • Helm Ergonomics: Evaluate whether your steering wheel is positioned comfortably for standing or sitting. Check if the throttle is within easy reach or if you need to angle or relocate it for smoother operation.
  • Wiring and Electrical Condition: Peek behind the console’s access panels for signs of corroded connectors, tangled wires, or insufficient fuse protection. This will guide how extensive your rewiring project might become.
  • Primary Navigation Goals: Are you adding a chartplotter for nearshore routes, or do you want radar and autopilot for more ambitious voyages? Clarifying your cruising grounds and typical usage helps you select the right electronics suite.

With a clear sense of your console’s limitations and your performance objectives, you’ll be ready to plan a cohesive upgrade strategy instead of bolting on random gadgets that might clutter or overload the dash.

Step 2: Selecting the Right Marine Electronics

Upgrading a RIB console usually means integrating or replacing navigation systems. Prioritize devices that fit your usage style and available space:

  1. GPS Chartplotter / Multi-Function Display (MFD):
    • Combines navigation charts, fishfinder, and possibly radar overlay in a single screen. Ideal if you want robust navigation or fishfinding in minimal dash space.
    • Choose a screen size that’s comfortably viewable from your normal helm position, but not so large it overwhelms the console.
  2. VHF Radio with DSC:
    • Essential for communication and safety. DSC (Digital Selective Calling) can send automated distress signals with GPS coordinates. Ensure your console can accommodate either a flush-mounted or bracket-mounted radio.
  3. Radar (If You Venture Offshore or in Poor Visibility):
    • A compact radar dome can mount on a T-top or arch. Integration with your MFD provides real-time tracking of nearby vessels, shorelines, or weather fronts.
  4. Autopilot (Optional):
    • Useful if you cover extended distances or troll. Some autopilots require hydraulic steering or specialized linkages. Confirm compatibility with your RIB’s system.
  5. Engine Instrumentation and Gauges:
    • Up-to-date engine monitors can display fuel flow, RPM, trim angle, and alerts. Digital gauge clusters often integrate seamlessly with modern outboards.

Balance your desire for cutting-edge features with your boat’s power capacity (battery and alternator) and console surface area. Overcrowding the dash with too many devices can impede quick reading or hamper safe operation.

Step 3: Designing the Console Layout

A thoughtful layout ensures that each instrument or device is accessible without obstructing your line of sight or each other. Approach layout planning systematically:

  • Mock-Up with Cardboard Templates:
    • Cut cardboard into the approximate size of each display or gauge, then tape them to the dash. This quick exercise helps you visualize where everything fits best.
  • Maintain Line of Sight:
    • Place your largest or most frequently referenced display(s) close to eye level when operating the RIB. Avoid mounting too low, requiring you to look down away from the horizon for extended periods.
  • Group Related Controls:
    • Keep engine gauges together, radio near the wheel for quick channel changes, and the MFD centered if it’s your primary nav tool. Group switches for bilge, lights, or horns in a logical row, labeled for quick recognition.
  • Room for Expansion:
    • If you plan future additions—like a second chartplotter or stereo head unit—leave some dash space or blank panels. This foresight avoids clutter or re-drilling later.

Consoles with a slanted dashboard or an overhead electronics box might offer multiple mounting angles. If your boat lacks these features, you can explore aftermarket console enclosures at CenterConsoles.myshopify.com.

Step 4: Upgrading Steering and Helm Comfort

Effective navigation hinges on smooth steering and an ergonomic helm. Sometimes a new steering wheel, seat, or leaning post can transform the RIB console experience:

  1. Steering Wheel Upgrade:
    • Consider a wheel with comfort grips or a smaller diameter if your console is compact. Stainless steel or carbon-fiber wheels can add style and corrosion resistance.
  2. Hydraulic or Power-Assisted Steering:
    • If your RIB has mechanical cable steering and a high-horsepower outboard, upgrading to hydraulic steering reduces helm effort and fatigue. For some boats, power assist might be an option, further enhancing control.
  3. Leaning Post with Storage:
    • Replacing a standard seat with a leaning post fosters a more comfortable upright posture. Many leaning posts include rod holders, tackle storage, or a small backrest—convenient for extended cruising.
  4. Footrest and Console Padding:
    • If you often stand while navigating, a console footrest or cushioned knee bolster reduces fatigue. Padded coaming bolsters around the console edges also protect hips and legs during bumpy rides.

Upgrading the physical helm space complements new electronics, ensuring you can pilot the RIB comfortably for longer durations. This synergy of form and function heightens your confidence in variable conditions.

Step 5: Wiring and Electrical Considerations

Integrating new electronics or steering components often means tackling the console’s electrical backbone. A neat, well-protected wiring job is crucial:

  • Use Marine-Grade Wire and Connectors:
    • Salt and moisture can quickly corrode standard connectors. Invest in tinned copper wire, heat-shrink terminals, and waterproof fuse holders. This ensures reliable power supply and longevity.
  • Fuse Blocks and Circuit Breakers:
    • Organize your helm electronics on a labeled fuse block or panel. An overloaded or unprotected line can damage sensitive devices or cause electrical fires.
  • Plan Cable Runs:
    • If your dash is crowded, route cables behind the console or along gunwales in cable conduits or looms. Keep them away from sharp edges or friction points that cause insulation wear.
  • Battery Management:
    • If you add multiple displays or fishfinders, you may need a second battery or an upgraded alternator. Ensure everything is grounded properly, especially in an aluminum console or hull environment to avoid galvanic corrosion.

Though wiring can seem daunting, a methodical approach with the right materials yields an installation less prone to failures. If you’re unsure, consult a professional marine electrician or reference resources at NovielliBoats.com for tips on building robust electrical systems.

Step 6: Table – Common Console Electronics and Purpose

Electronics Overview for Upgraded RIB Consoles

Device Primary Function Installation Tip
Chartplotter / MFD Navigation, fishfinder, radar overlay Mount at eye-level, ensure glare-free angle
VHF Radio (DSC) Communication, distress calling Antenna height improves range, keep mic accessible
Engine Data Display Monitors RPM, fuel flow, warnings Locate near throttle for quick references
Radar Dome Detect vessels, shorelines in low visibility Mount on T-top or arch above line of sight
Autopilot Control Head Maintains heading or route automatically Requires hydraulic or power-assist steering

A well-chosen set of devices is only as effective as their mounting and wiring quality. Proper layout preserves usability while preventing dash clutter or confusion during critical moments.

Step 7: Enhancing Weather Protection and Visibility

Piloting a RIB in wind, rain, or choppy seas can be tiring without basic weather shielding. Consider these console add-ons:

  • Windscreen or Spray Shield:
    • Helps deflect wind and spray away from the helm. Acrylic or tempered glass screens can be mounted on top of the console; some RIB console kits include a built-in shield groove.
  • Console Enclosure Panels:
    • For bigger RIBs, a partial enclosure around the console might be feasible, providing a mini weather shelter. Removable vinyl or isinglass panels let you adapt to changing conditions.
  • Wiper or Defogger (Larger Consoles):
    • Rare on smaller RIBs, but if your console has a large integrated windshield, a small wiper or anti-fog coating can preserve visibility in heavy rain.

While many RIB owners enjoy the open-air feel, being able to shield the helm from spray or sudden squalls improves overall comfort and can extend your boating season or route possibilities.

Step 8: Best Practices for Console Upgrades and Installation

When you’re ready to install or modify your RIB console, keep these tips in mind:

  1. Consult the Boat’s Manual or Manufacturer:
    • They may specify safe drilling zones, recommended hardware, or weight limits. Adhering to these guidelines prevents structural compromise or tube interference.
  2. Use High-Quality Marine Sealants:
    • Whenever you create new holes for electronics or hardware, seal the edges thoroughly to avoid water intrusion. This is especially crucial around console edges or deck penetrations.
  3. Plan Cable Routes in Advance:
    • Identify the path from the dash to the transom for transducer cables, from the battery to the electronics, etc. Minimizing splices or sharp bends fosters reliability.
  4. Label Everything:
    • Label wires and fuse blocks. As your console evolves, clear labeling lets you troubleshoot faster, saving time and headache in the long run.
  5. Verify Ergonomics Before Final Mounting:
    • Sit or stand at the helm, simulate driving posture, and confirm that your arms and sightlines are comfortable. Adjust angles or bracket heights if needed.

Rushing an installation might lead to future leaks, glare on screens, or difficult steering angles. A measured approach fosters a long-lasting and intuitive console layout.

Step 9: Top 10 Most Searched Questions and Answers on RIB Console Upgrades

  1. Q: Can I replace my entire console with a larger aftermarket unit?
    A: Yes, if space and structural points allow. Verify the boat’s max recommended console width or weight, and ensure you properly reinforce mounting points to avoid stress on the tubes or deck.
  2. Q: Are flush-mount electronics better than bracket mounts?
    A: Flush mounting looks cleaner and uses space efficiently. However, bracket mounts can be angled or swiveled. Pick whichever installation style matches your dash surface and viewing preferences.
  3. Q: Do I need special backing plates when drilling into my RIB’s console?
    A: For larger or heavier items (like a big chartplotter, T-top supports), backing plates spread load and prevent cracks. Lightweight attachments (like a small gauge) might only need washers.
  4. Q: Which steering wheel diameter is standard for a center console RIB?
    A: Many RIB wheels range from 13 to 15 inches in diameter. The right size depends on console width, steering comfort, and personal preference.
  5. Q: How do I prevent water intrusion in dash cutouts?
    A: Seal edges with marine-grade silicone or polyurethane sealants. Some MFDs or gauge pods include gaskets. Confirm a snug fit to keep spray out.
  6. Q: Does installing extra electronics drain my battery quickly?
    A: Additional devices can increase draw, especially if run simultaneously (e.g., fishfinder + radar + livewell pump). A second battery or a higher-capacity alternator helps manage demands safely.
  7. Q: Can I integrate autopilot on a RIB with mechanical steering?
    A: Typically, autopilots require hydraulic or power-assisted steering. Some aftermarket solutions exist for cable systems, but check compatibility carefully, as many are specialized or require major modifications.
  8. Q: Should I install a console footrest if I frequently stand while driving?
    A: Yes. A footrest or angled leaning rail helps stabilize your posture in rough seas, reducing fatigue. It’s an underrated comfort upgrade for active pilots.
  9. Q: Are large screens (12+ inches) too big for smaller RIB consoles?
    A: Potentially. While big screens offer great detail, they can block your forward view or crowd other gauges. Balance your console dimensions with the desired display size for safe operation.
  10. Q: Can I install overhead electronics boxes on a simple bimini top?
    A: Typically no—bimini frames aren’t rigid enough for heavier gear. A T-top or rigid arch is more suitable for overhead electronics or rod storage.

Step 10: Conclusion and Next Steps

Transforming your center console RIB into a cutting-edge navigation hub involves more than just slapping a GPS on the dash. By analyzing your existing layout, investing in the right electronics, planning a neat wiring scheme, and optimizing ergonomics with improved steering or protective features, you create a helm station that truly elevates your boating experience—be it coastal exploration, inshore fishing, or occasional offshore runs.

Remember to source high-quality materials, from marine-grade wires to durable mounting brackets, preserving the boat’s structural integrity and reliability. For specialized console kits, accessories, or professional tips, CenterConsoles.myshopify.com serves as a dedicated marketplace. If you want deeper insights into engine care, hull maintenance, or advanced RIB projects, NovielliBoats.com hosts a variety of articles and tutorials.

A well-upgraded console fosters both confidence and convenience at the helm, helping you navigate with ease and focus on the joys of life on the water. Whether you’re due for a full console replacement or just a few electronics upgrades, taking a methodical, boat-specific approach ensures each improvement aligns with your vessel’s unique dimensions and your personal boating ambitions.
